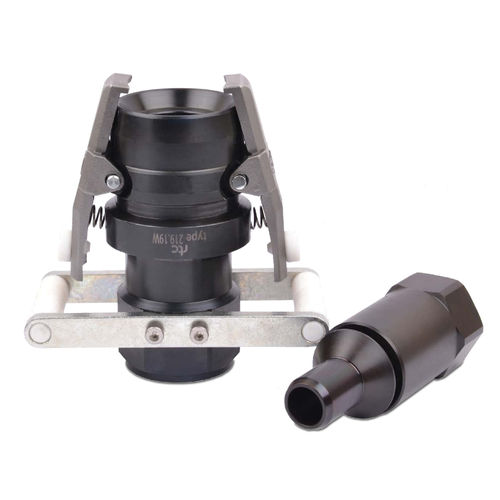

Hydraulic fitting 219 seriesquickPTFEstainless steel
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- quick
- Material
- PTFE, stainless steel, steel
- Other characteristics
- high-temperature, transfer, automatic lock
- Diameter
12 mm, 19 mm
(0.472 in, 0.748 in)- Operating pressure
Max.: 20 bar
(290.08 psi)Min.: 0 bar
(0 psi)
Description
High-temperature
Flow size - 12 / 19 mm
Pressure range - 20 bar
Temperature range - -20°C - +325°C
Using Area High temperature (325°C) thermal oil coupler with double shut-off valving system.Able to use for heat transfer equipments.
Working Principle Leak-Tight on connection and disconncetion of the plug.PTFE heat protected hand grips on the latch to unlock the plug under hightemperature.Automatic locking is provided by double latches on the coupler body.
