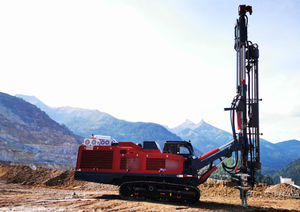

Rotary drilling rig RTD45

Rotary drilling rig - RTD45 - RTDrill
Rotary drilling rig - RTD45 - RTDrill
Add to favorites
Compare this product

Characteristics

Drilling unit
rotary
Drilling diameter

Min.: 127 mm
(5 in)

Max.: 165 mm
(6 in)

Drilling depth

30.97 m
(101'07" )

Motor power

403 kW
(547.93 hp)

Description

Recommended hole size : - 127 - 165 mm / 5 - 6.5 in Weight: - 24 948 kg / 55 000 lbs Recommended drill pipe length: - 7.62 m / 25 ft Max drilling depth : - 30.97 m / 101.6 ft Single pass depth: - 8.1 m / 26.6 ft Engine: - CAT C15 Tier III - IVf Power unit : - 403 kW / 540 hp @ 1 800 rpm

Catalogs

RTD45
RTD45
4 Pages
