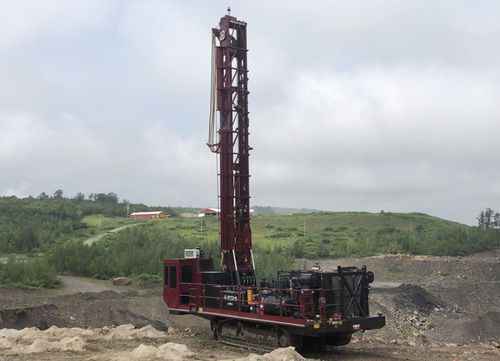

Rotary drilling rig RTD55
Add to favorites
Compare this product
Characteristics
- Drilling unit
- rotary
- Drilling diameter
Max.: 172 mm
(7 in)Min.: 127 mm
(5 in)- Motor power
432 kW, 447 kW
(587.36 hp, 607.75 hp)
Description
Recommended Hole size : - 127 - 172 mm / 5 - 6 ³⁄4 in
Weight: - 36 287 kg / 80 000 lbs
Recommended drill pipe length: - 9,14 m / 30 ft
Max drilling depth : - 45.57 m / 149.6 ft
Single pass depth : - 9 m / 29.6 ft
Engine: - CAT C15 Tier III - IV - IVf - V
Power unit kW - hp @ rpm: - 432 - 447 kW / 580 - 600 hp @ 1 800 rpm
Catalogs
RTD55
4 Pages
