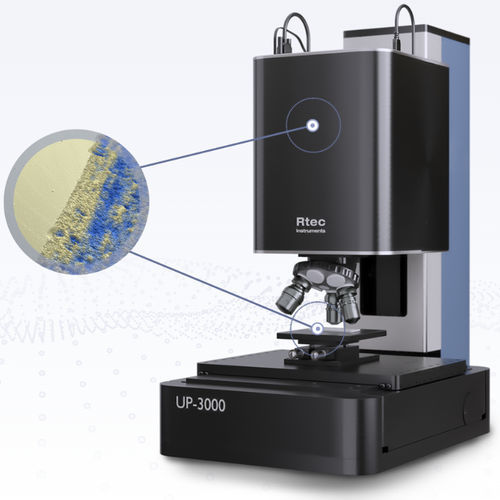

Optical microscope UP-3000

measuringtrinocularbright field

Truly Universal UP-3000 Advanced Compact Optical Profilometry 5 Imaging Modes in One 3D Profiler Confocal + Interferometer + Dark Field + Variable Focus + Bright Field Imaging A Premium Microscope The 3D optical profilometer UP-3000’s technology, performance, high accuracy, resolution, and versatility creates a class of its own. Equipped with fast scanning and high resolution, it offers the best solution for surface profiling. Ultra High Speed Industry leading camera with 200 Fps with nm resolution. Best Resolution With Ease Highest XYZ resolution across any sample at the click of a button. Versatile Platform Open platform , automatic XY stage, tip tilt stage, precision engineering Next Gen Optical Profilometer Technology Fastest Confocal - Full Area in 1 Scan The disk and its 1000 pin holes illuminate the entire sample area in one quick scan. No need to move mirrors or XY stages using only 1 pin hole, as in conventional confocal. Two High Speed Cameras Each imaging technique use a dedicated high-speed camera to allow the optimization of the optical path and higher resolution. Conventional optical profilometers use only 1 optical path and 1 camera compromising the image quality. 4 Color LED Uniform area illumination and wavelength selection based on the sample. Conventional laser sources produce artifacts and have a short product life. Dark Field Imaging Microscope optics provides both bright field and dark field modes. Conventional uses bright field imaging only.
