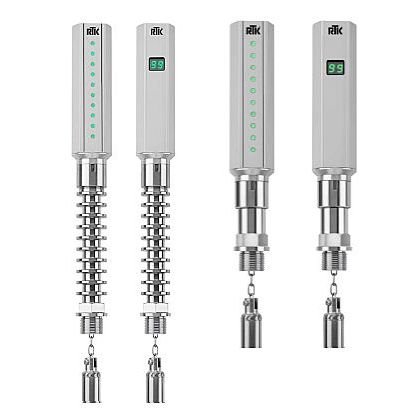

Float level transmitter NI 1341, 1342for liquidsanalogfor storage tanks
Add to favorites
Compare this product
Characteristics
- Technology
- float
- Medium
- for liquids
- Interface
- analog
- Applications
- for storage tanks
- Level range
Min.: 150 mm
(5.91 in)Max.: 4,000 mm
(13.12 in)- Process pressure
Min.: 40 bar
(580.15 psi)Max.: 100 bar
(1,450.38 psi)- Process temperature
Min.: -60 °C
(-76 °F)Max.: 280 °C
(536 °F)
Description
Series NI 1341 / 1342
Linear measuring range 150 - 4000 mm
Wear-resistant, inductive tracing (differential transformator)
powered loop 4 – 20 mA
trend display per 10% steps
No connection between displacer and electronic
Catalogs
Series NI 1341 / 1342
2 Pages
