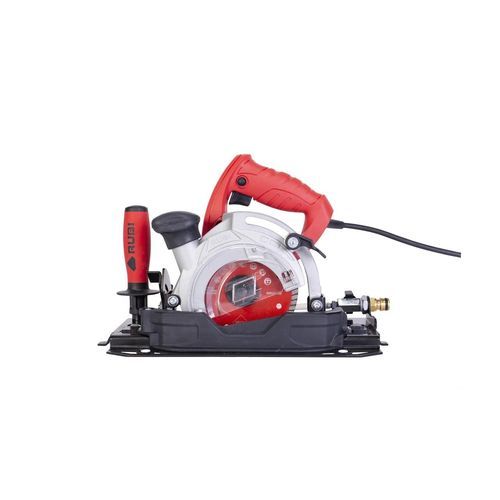

Circular saw TC-125 series

for marblefor ceramicsfor tile

The TC-125 circular saw is part of the SLAB system, ideal for large format tiles. For the correct operation of the TC-125, it is NECESSARY to use the SLIM cutting guides. Thanks to this system of guides, you will obtain a precise and smooth cut. The TC-125's carbon steel sliding plate incorporates stainless steel radial bearings with a very simple adjustment system that allows the machine to be in perfect condition. RUBI TC-125 circular saw has a double dust reduction system. Being able to control the dust generated during the cut, thanks to its connection with a vacuum hose (dry cut) or through the water inlet. The connection to the vacuum hose is 32 mm, but the cutter includes an adapter for other sizes. The water inlet consists of a quick 16 mm hose connection and a rubber stopper which covers the inlet of the vacuum hose and makes secondary functions during wet cutting, thus improving ergonomics during cutting. The head of the TC-125 is adjustable up to 45º and adjustable in height. In this way, it will be possible to notch and obtain special and more precise cuts - keep in mind that the thickness of the cut varies according to the diameter of the disc. For mitre cutting, the TC-125 includes an additional handle that increases control and visibility during cutting, thus improving the ergonomics of the job. You can use two blade diameters: 115 and 125 mm (see cutting thickness for each diameter).
