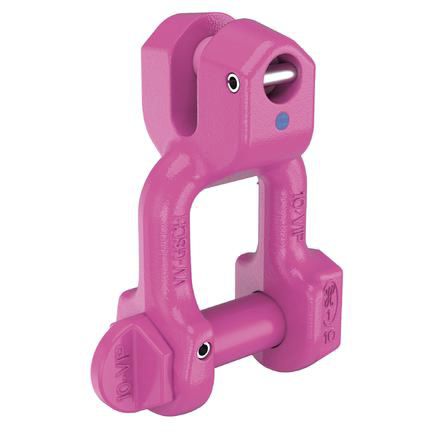

Clevis lifting shackle VIP-VVGSCHscrew
Add to favorites
Compare this product
Characteristics
- Type
- clevis
- Other characteristics
- screw
- Breaking load
Min.: 630 kg
(1,389 lb)Max.: 20,000 kg
(44,092 lb)
Description
High tensile version with an integrated safety thread in the shackle bracket. Smooth bolt support in the shackle on both sides. The bolt is turnable. No bending strength in the thread (only a securing function). Optimal adaptation - max. mouth width with the smallest shackle bolt. Owing to the turned clevis connection, it is extensively resistant to bending. Long term securing by driving in the pre-assembled tensioning sleeve. Special thread, thus distinctive in comparison to other shackle bolts. Pre-assembled connecting bolt and tensioning sleeve.
Catalogs
No catalogs are available for this product.
See all of RUD‘s catalogs
