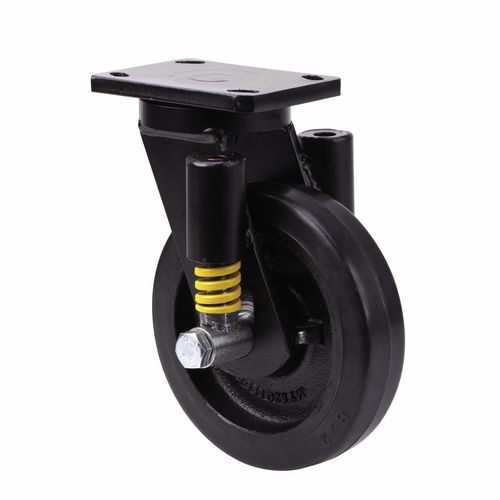

Swivel caster HLS-DE seriesbase plateheavy-dutysteel
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- heavy-duty, steel, aluminum, elastic rubber
- Load capacity
Min.: 350 kg
(772 lb)Max.: 500 kg
(1,102 lb)- Wheel diameter
Min.: 160 mm
(6.299 in)Max.: 250 mm
(9.843 in)- Tread width
50 mm
(1.97 in)
Description
Castors with aluminium centre and elastic black rubber tyre and a hardness of 70º Shore A, especially indicated to support high-loads . With highly resistant spring loaded suspension, ideal in uneven surfaces due to its shock absorption.
It is used in: carbody factories, internal logistics, transport tools, outdoor areas, mobile platforms, elevating platforms, transport carts, logistics for military missions material, heavy machinery and mobile cranes.
Suitable for mechanical engineering projects by draftsmen and project executors.
DE: Ideal for the manual displacement of medium-loads. Noiseless. Absorption to impacts and vibrations. High protection of floors and equipment.
