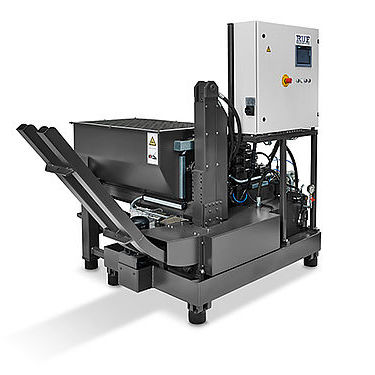

Metal chip briquette press RUF 4-11

automatic

For small to medium quantities of metal chips Short amortisation period Recovery of cooling lubricants Fully automatic 24h operation possible Long service life & low maintenance requirements Unsere Our RUF 4-11 metal press series is best suited to small to medium quantities of metal chips. The value of your metallic residues can be increased through the process of briquetting. At the same time, expensive cooling lubricants are recovered, which our briquette presses squeeze out of the damp metal chips. The throughput is between 40 and 300 kg/hour, depending on the material to be briquetted. The briquette machines can be adapted to your individual requirements. Max. throughput rate (kg/h) Aluminium - 60-300 Max. throughput rate (kg/h) Brass, bronze, cooper - 100-220 Max. throughput rate (kg/h) Magnesium - 40-50 Max. throughput rate (kg/h) Steel & Castings - 100-200 Max. throughput rate (kg/h) Titan - 65-130 Power (kW) - 4, 5,5, 11 spec. Pressure, max. (kg/cm²) - 600 - 3.700 briquette formats (mm) - 60x40, 60x60, Ø60, Ø80 Size (m) Lenght x Width x Hight - 1,3 x 1,5 x 1,9 bis 1,6 x 1,6 x 1,95 ca. weight (t) - 1,4 - 1,8t
