DC gear-motor SN 14 / SN14H
three-phasewormright angle

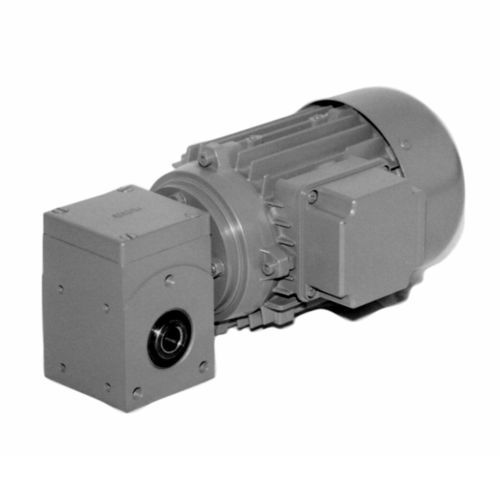

DC gear-motor - SN 14 / SN14H - Ruhrgetriebe KG - three-phase / worm / right angle
DC gear-motor - SN 14 / SN14H - Ruhrgetriebe KG - three-phase / worm / right angle
Add to favorites
Compare this product

Go to the Ruhrgetriebe KG website for more information

Characteristics

Motor type
DC, three-phase
Type
worm
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Power
100 W...500 W
Torque
100 - 200 Nm
Mounting
foot-mounted
Number of stages
single-stage
Product applications
industrial
Other characteristics
maintenance-free
Gear ratio

Min.: 5 unit

Max.: 75 unit

Description

Gear Drive SN14 The right drive solution for every challenge: Single-stage gear drive with hollow shaft - Gear Type: SN14H - Motor Type: Three-Phase (230/400V) and Direct Current (180/200V) - Ratios: 5; 7; 11; 15; 17; 20; 24; 30; 32; 38; 56; 75 - Motorpower AC: 45 - 120W / DC: 120-250W - Shaftdesign: Hollow Shaft - Max. permissible torques: 5,3-14 Nm - Effectiv torques: 0,6-14 Nm - Mounting: Gear Foot / Flange - Additional options: brake motors, UL/CSA-certification, thermal protection, encoder -Ratios Additional Data: - Ball bearings for motor and gear - Worms hardened and ground - Wormwheel made of special bronze alloy For further information see product detail page.
