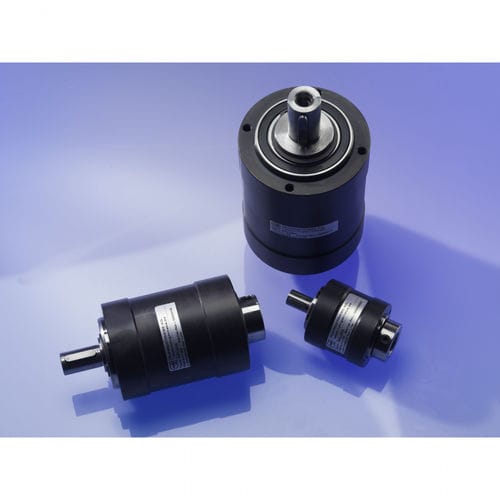

Planetary gear reducer RPL050coaxialsolid-shaft5 - 10 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 5 - 10 Nm
- Configuration
- compact
- Number of stages
- single-stage, two-stage
- Performance
- precision, high-efficiency, low-backlash, high-torque, maintenance-free, high-rigidity
- Applications
- for servo motors, industrial, for electric motors, for DC motors, for asynchronous motors
- Other characteristics
- rugged
- Rotational speed
Min.: 4,000 rpm
(25,132.74 rad.min-1)Max.: 8,000 rpm
(50,265.48 rad.min-1)- Gear ratio
Min.: 5 unit
Max.: 100 unit
Description
Planetary Gear RPL050
The very robust design of the RPL line allows for high torsional rigidity.
The planetary gears are ideally applicable even at high radial or axial load.
hanks to the ratio of i=10 in the first planetary stage, the 2-stage version may reach transmissions of up to i=100.
For further information see our product detail page.
Catalogs
Catalogue page RPL050
1 Pages
