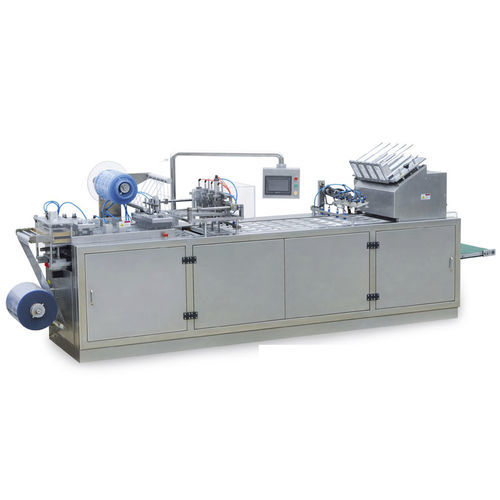

Automatic packaging machine RTZP-500

blisterwith sealing

PVC feeding PVC heating & forming Blister towing & punching Waste material collecting Mechanical hand picking blisters into sealing molds Inspecting the blister Feeding automatically or by hand Feeding & inspecting cardboard 2times heating under high pressure Finished products Packing Material PVC sheet thickness (0.15-0.5)*(330-460)mm Cardboard 200g-700g Compressed air pressure (0.55-0.85)Mpa air consumption quantity≥0.3m/min Power consumption 380V50Hz 7-12Kw Mould cooling water Running water or circle water consumption50L/h Overall dimension L*W*H(3600-4300)*900*1650mm Weight 1500-2300Kg Production capacity 10-30 punches/min Travel range 50-(130-180)mm Max area of cardboard 500*(125-220)mm Max forming area and depth (310-440)*(120-180)*(16-45)mm (According to customer's requirement)
