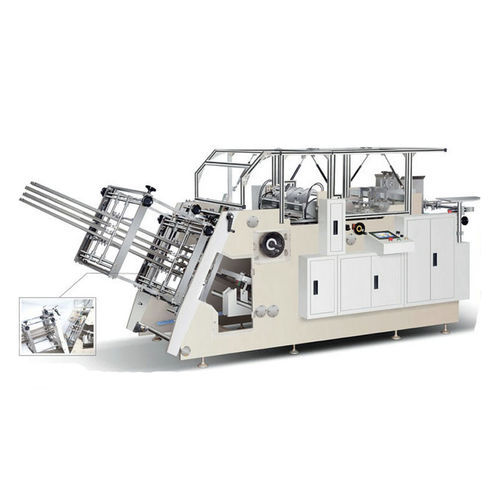

Box forming machine RTZF800

hotfor paperautomatic

New generation three dimensional box machine is specialized in producing various paper products, which can produce hamburger box,square box,potato chipper,food box(portable outside),and other boxes made by paperboard and corrugated paper. Mechanical properties 1,This new generation of three-dimensional molding box machine features: with stable quality, high efficiency, speed up to 160pcs/min. 2.In the same machine, only need to change different molds can create different specifications of the boxes, hamburger boxes, boat shaped box, food packing box, carton products such as chicken. 3,It adopts the hot air device, can achieve high efficiency, high accuracy and make PE-coated paper box. 4,This machine is mostly used high quality seal bearing, long service life, good stability. 5,The machine uses the PLC intelligent control system, PLC control with automatic stop. 6,The main mold with pine wooden, which is economical for mold replace.. 7,Can automatically collect deposits, inventory of finished goods. 8,High quality Synchronous belt makes no error when it’s running. Specification Paper Size 50*50-320*320mm Raw Material PE coated Paper Board : 170-400gsm Corrugated paper: max 1.5mm Rated Productivity Max.160pcs/min (depends on different box) Power Source 380V 50Hz or other Total Power 4KW Total Weight 2000KG Package Size 3200*1500*1600mm Note Available to make machine against customer requirement
