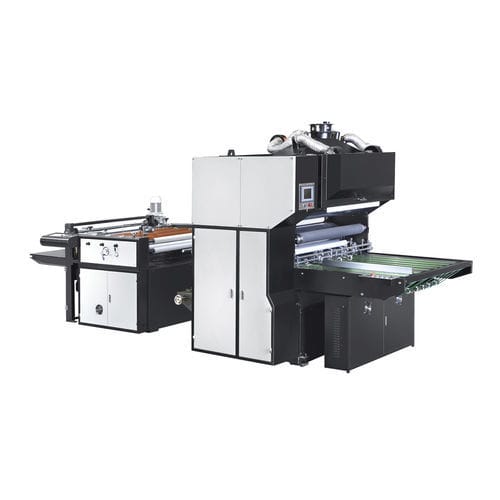

Semi-automatic laminator RLFM-B1100

Max.paper width： 1050MM Paper thickness 128-500g/㎡ Speed 0-40m/min Pressure temperature 80-120℃ Total power： 48KW Work power： 20KW Overall dimensions 6700*2000*2400mm Overall weight 4500kg Function l The design of the whole set covers small room , combine gluing,drying,jointing and electric control together,which is convenient for operation. l Electric control uses PLC programmable controller and touch screen control,convenient for operation and host gluing conveying uses transducer for speed-adjustment. l Glue drying system uses heat wind internal cycle energy-saving and power-saving and other function design,and glue film is operating steadily and the excursion difference in the left and right is little; l Main composite roller uses steel roller with big diameter,oil heat transfer oil heating system and the temperature in the surface is ecen and stable;
