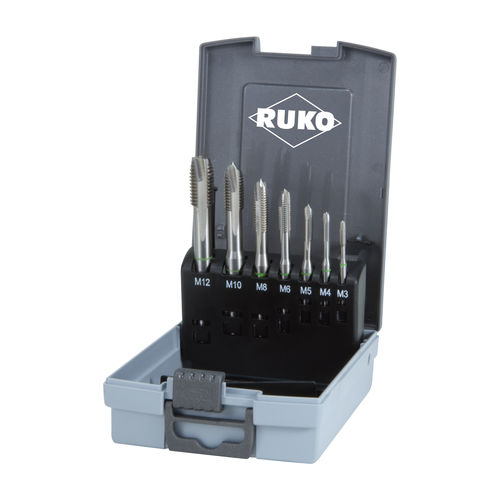

Cobalt tapping set 24506 series

HSS-Ecast iron

The machine tap consists of cobalt alloyed heavy-duty high-speed steel. Its high heat resistance means a longer tool life. For through threads and bottoming threads in unalloyed and alloyed steels up to a strength of 1000 N/mm², malleable cast iron and non-ferrous metals. The thread is cut in one operation. Like high speed steel with cobalt alloy. This heat-resistant material is used for processing materials with high strength and in long cutting channels with correspondingly strong heating. The cobalt content of 5% provides a higher heat resistance and higher stressing capacity. Net weight 0.55 kg Technical data Coating - uncoated Shaft - Square shank Cutting direction - right hand cutting Tolerance - ISO 2 6H DIN - DIN 371/376 Flank angle - 60° Form - type B, 4 - 5 threads with progressive tap and interrupted threads Application areas Main application - Stainless steel Brass Steel < 800 N/mm² Steel < 1000 N/mm² Other application - Aluminium Bronze Plastics Cast iron
