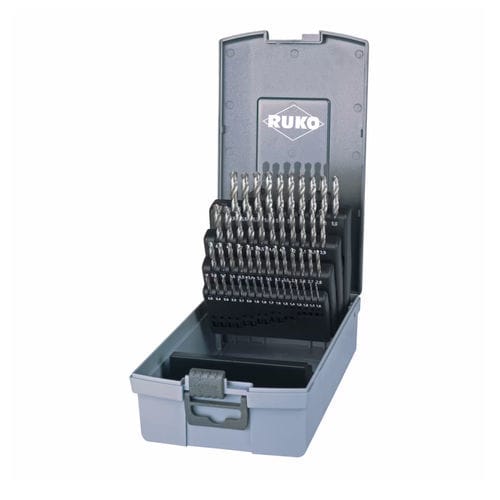

Solid set of drill bits 21421 seriesfor aluminumfor brassfor cast iron
Add to favorites
Compare this product
Characteristics
- Type
- solid
- Drilled material
- for plastics, for cast iron, for brass, for aluminum
- Drill bit material
- HSS-G
- Other characteristics
- high-performance, DIN 338, twist
- Diameter
Min.: 1 mm
(0.04 in)Max.: 13 mm
(0.51 in)
Description
High-performance ground standard twist drill made from heavy-duty high speed steel. The fully ground twist drill has a precise concentricity. Thanks to the split point, this drill has good centring properties and requires little pressure.
Technical data
Coating - uncoated
Shaft - cylindrical
Cutting direction - right hand cutting
Tip grinding - Shape C: Split point
Tolerance - h8
Spiral angle - 25° - 30°
Drilling depth - 5 x diameter
Groove profile - normal
Core - normal
Point angle - 118°
