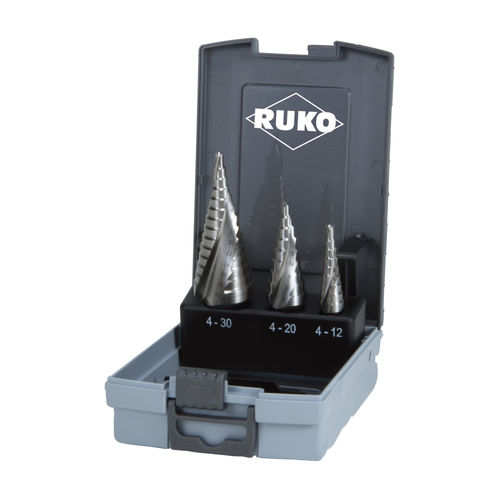

Solid set of drill bits 101026EROfor plasticsfor cast ironfor stainless steel
Add to favorites
Compare this product
Characteristics
- Type
- solid
- Drilled material
- for plastics, for cast iron, for stainless steel, for brass, for aluminum, for steel
- Drill bit material
- HSSE-Co 5
- Other characteristics
- spiral flute, step
- Diameter
Min.: 4 mm
(0.16 in)Max.: 30 mm
(1.18 in)
Description
The CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material.
Net weight
0.6 kg
Technical data
Number of cutting edges - 2
Coating - uncoated
Cutting direction - right hand cutting
Tolerance - work's specification
Point angle - 118°
Step angle - 90°
Catalogs
No catalogs are available for this product.
