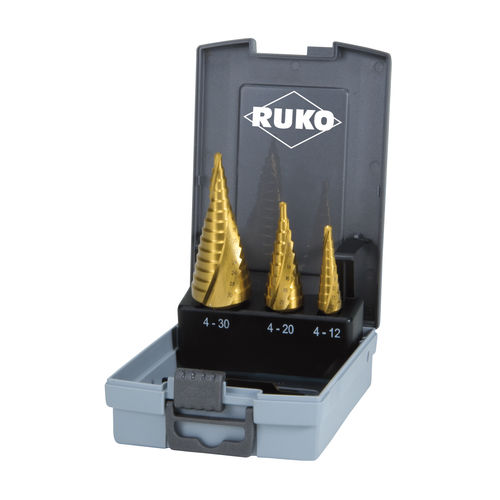

Solid set of drill bits 101026TRO
for plasticsfor cast ironfor stainless steel

solid set of drill bits
solid set of drill bits
solid set of drill bits
solid set of drill bits
solid set of drill bits
solid set of drill bits
solid set of drill bits
Add to favorites
Compare this product

Go to the RUKO GmbH Präzisionswerkzeuge website for more information

Characteristics

Type
solid
Drilled material
for plastics, for cast iron, for stainless steel, for brass
Drill bit material
HSS
Other characteristics
with TiN-coated bit, spiral flute, step
Diameter

Max.: 30 mm
(1.18 in)

Min.: 4 mm
(0.16 in)

Description

The CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material. Net weight 0.6 kg Technical data Number of cutting edges - 2 Coating - TiN coating Cutting direction - right hand cutting Tolerance - work's specification Point angle - 118° Step angle - 90°
