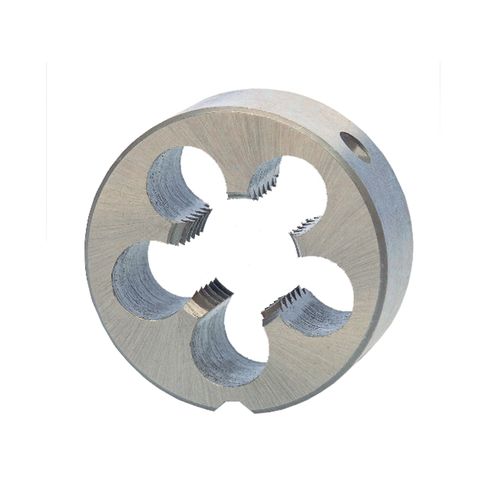

HSS threading die 23 seriesISOM2 - M24HSS-Co 5
Add to favorites
Compare this product
Characteristics
- Type
- round, ISO, HSS, HSS-Co 5, M2 - M24
Description
The round die consists of heavy-duty high-speed steel (HSS) in unalloyed and low-alloyed steels up to a strength of 800 N/mm². The round die consists of 5% cobalt alloyed heavy-duty high-speed steel (HSSE-Co 5) in unalloyed and alloyed steels up to a strength of 1000 N/mm² and non-ferrous metals. The thread is cut in one operation.
Net weight
0.075 kg
Thread pitch
2,00 mm
Thickness
14.0 mm
Length
Outer diameter
38.0 mm
Technical data
Coating - uncoated
Cutting direction - right hand cutting
Tolerance - ISO 2 6H
DIN - 22568
Flank angle - 60°
