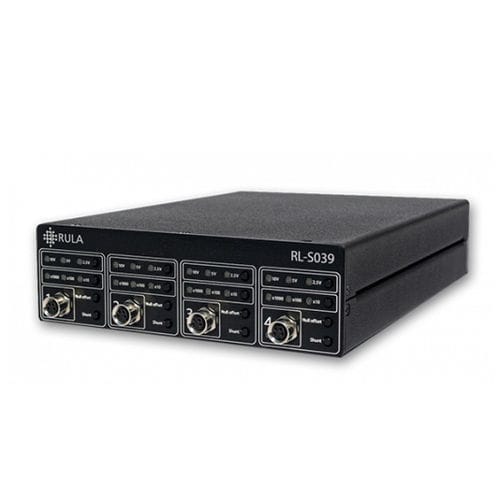

Strain gauge amplifier RL-S039powercurrentvoltage
Add to favorites
Compare this product
Characteristics
- Type
- power, voltage, current
- Secondary function
- measuring, acquisition
- Other characteristics
- with USB port, programmable, four-channel, for strain gauges, Ethernet
- Voltage
2.5 V, 5 V, 10 V
- Current
50 mA
- Frequency
20,000 Hz
Description
Strain-gauge amplifier
Universal four-channel amplifier and power supply unit for strain measurement sensors with configurable gain and excitation voltage.
RL-S039 allows the user to connect strain-gauge sensors to any data acquisition and vibration control systems.
Every channel is equipped with a noise filter, and the amplifier provides programmable bridge offset nulling and shunt calibration.
RL-S039 protection system automatically decreases current to prevent short circuit or excitation overload.
Easily connect the amplifier to your network using USB or Ethernet, and then configure and control RL-S039 via TestUp.
Specifications
Channels
• Number of channels : 4
• Gain (configurable) : 10, 100, 1000
Other
• Dimensions : 50 × 150 × 230 mm
• Temperature range : 5 – 40 °C
• Weight : 0.7 kg
• Power consumption : 10 VA
