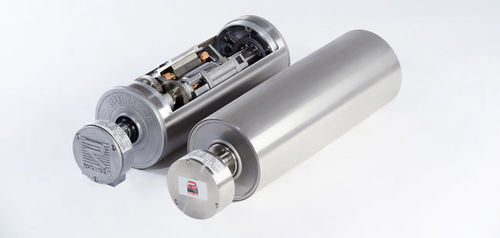

Three-phase drum motor 138LSfor light-duty applicationsfor conveyor
Add to favorites
Compare this product
Characteristics
- Motor type
- three-phase
- Options
- for light-duty applications, for conveyor
- Diameter
137 mm, 138.5 mm
(5.4 in, 5.5 in)- Width
Min.: 300 mm
(11.8 in)Max.: 1,800 mm
(70.9 in)- Velocity of the shell
Min.: 0.04 m/s
(0.13 ft/s)Max.: 2 m/s
(6.56 ft/s)- Rated torque
Min.: 3,650 N
Max.: 8,300 N
Description
This motorized pulley is a flexible component because of its wide power and speed range.
Characteristics
Salt-water-resistant aluminium bearing housings
3-phase AC induction motor
Dual voltage
Integral motor protection
Steel-hardened helical spur gear
Low noise
Maintenance-free
Lifetime lubricated
Reversible
Reinforced shaft for RL above 800 mm
Applications
Conveyors with high-duty cycles
Transport conveyors
Logistics applications
Airport check-in conveyors
Mobile conveyors
Food processing
Steel or plastic modular belt applications
Dry, wet and wash-down applications
