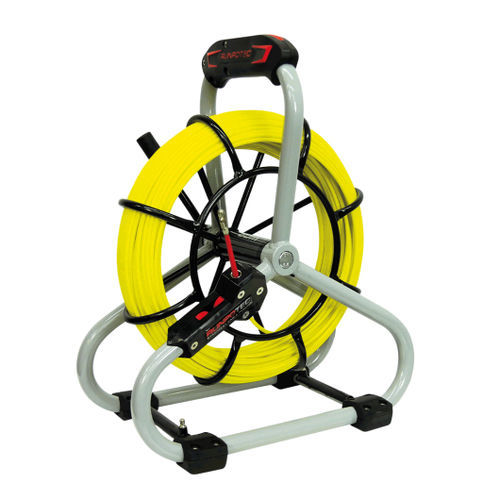

Fiberglass cable puller GF 4.5

STANDARD-SET FIBERGLASS ROD Ø 4,5 MM WITH STEEL REEL INCL. RUN-OUT SYSTEM Cable pulling tool for pipe diameters 30 -80 mm Standard set fiberglass rod (duct rodders) Ø 4.5 mm - RUNPOTEC RTG Ø 6 mm thread with robust steel reel Ø 330 mm (CDP/powder coated)with new double run-out system (automatic run-out brake and quick run-out), additional parking brake. Fiberglass rod breaking load 1300 kg, total breaking load 220 kg. Optimal field of application: for pipe diameters 30 mm - 80 mm. Scope of supply: 1 x Standard-Set fiberglass rod Ø 4,5 mm, Length: 60 m, stainless steel ending joint on both sides (start/end), 1 x steel reel Ø 330 mm incl. double run-out system, 1 x RUNPOGLIDER with thread and swivel ADVANTAGES • incl. steel reel • Double run-out system (automatic run-out brake and fast run-out) • Additional parking brake • Fiberglass rod breaking load 1300 kg • Total breaking load 220 kg • Bending radius with ending joint 120 mm • Bending radius only rod 55 mm Dimensions: L 380 x B 250 x H 500 mm Length: 30/40/50/60/80 Meter Bending radius: - 120 mm Recommended tube-Ø: 30 - 80 mm Weight: 3.49/ 3.71/3.93/4,15/4.59 kg Total tension load: 220 kg Material: fiberglass core with PP sheath Ø Rod: 4,5 mm
