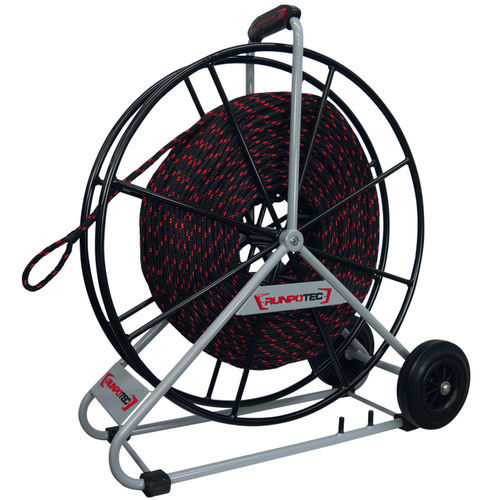

Polyester cable puller 1012 series

RUNPOTEC polyester pulling ropes are optimally suited for horizontal cable pulling with the RUNPOTEC CW 800 E capstan winch. RUNPOTEC recommends using the connecting swirl with swivel for horizontal cable pulling. It reduces frictional resistance and protects the cable and the feed system. The reel allows controlled winding and unwinding of the rope. In addition, the rope is perfectly stowed away and ready for use at any time. The 770 mm reel cage size can be easily rolled and transported due to the integrated wheels. The reel is CDP/powder coated. Safety instructions: Not suitable for vertical cable pulling, must not be used to carry or lift loads or persons. Optimal application: for horizontal cable pulling in combination with the CW 800 E capstan winch. Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com. Scope of supply: 1 x Pulling rope Ø 12 mm, length: 150 m, with reel Ø 770 mm incl. parking brake and transport wheels ADVANTAGES • Spliced loops at the start and end of the rope • Low rope elongation • Practical reel for controlled winding and unwinding of the rope • Mobile reel with wheel drum and parking brake • Dimensions: - L 820 x B 400 x H 900 mm • Length: 150 / 200 /300 /350 Meter • Total breaking load: - 2180 kg • Weight: 30 / 36/ 55/ 61 kg • Reel basket Ø: - 730 mm • Internal basket width: - 98 mm • Material: - Polyester rope • Ø Rope: - 12 mm • Loop: - 2x spliced-in loops
