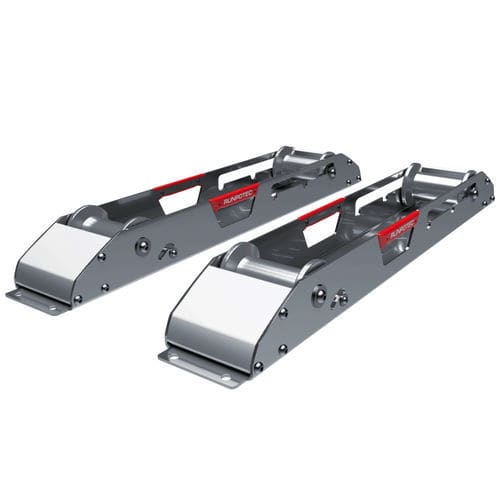

Cable drum unwinder AS 900

cablemanualmaintenance-free

The AS 900 unwinding rails are designed for safe unwinding of heavy cable material and cable drums from 450 mm to 2000 mm diameter. One of the two heavy duty rollers can be positioned in 3 different settings. The stable stainless steel-aluminium construction with high-quality, maintenance-free, ball bearing heavy-duty support rollers ensure a long service life. Easy and quick change of drums due to the unwinding brake. Due to their two-part narrow design they are easy to use in cramped spaces. Especially recommended where different cable types are to be processed side by side within a short time. Max. drum wight 1700 kg (wooden drum). Since some of the drums are in very poor condition, the recommended working load bearing capacity of 800 kg should not be exceeded. Optimal field of application: cable drums from 450 mm - 2000 mm diameter Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com. Scope of supply: 2 x AS 900 Roll-off rails ADVANTAGES • High quality construction • Stainless steel-aluminium construction with long service life • High quality, maintenance-free, ball bearing mounted heavy duty rollers • For cable drums from Ø 450 mm to Ø 2000 mm • Due to the unwinding brake, easy and quick changing of the cable drum • Dimensions: - L 900 x B 152 x H 100 mm • Weight: - 22,74 kg • Load bearing capacity: - max. 1700 kg
