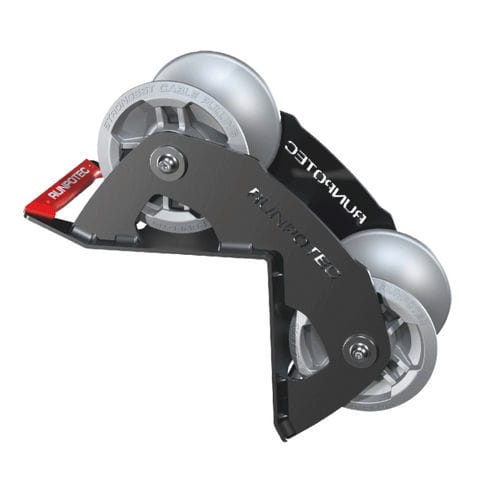

Cable roller guide 10153

CABLE GUIDE ROLLER - 90 DEGREES for corners and edges - roller diameter Ø 130 mm The cable guide roller - 90 degrees is ideally suited for use on various edges to pull cables gently around corners with the least possible resistance. It can be secured in place with a belt or screws via the assembly openings. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality, heavy-duty die-cast aluminium rollers with integrated stainless steel ball bearings and the sturdy powder-coated steel frame guarantee a long service life. Ergonomic aluminium handle - Load capacity 4500 kg Optimum area of application: to pull cables gently and effortlessly around corners or edges Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com. Scope of supply: 1 x Cable guide roller - 90 degrees ADVANTAGES • Aluminium heavy-duty rollers with stainless steel ball bearings • Robust metal frame • CDP and powder coated • Ergonomic aluminium carrying handle • Load capacity 4.500 kg • Dimensions: - L 360 x B 155 x H 140 mm • Weight: - 6,47 kg • Material: - Roller: Aluminium / Frame: Steel • Load bearing capacity: 4500 kg • Max. cable diameter: Ø 100 mm • Roll diameter: - Ø 130 mm • EAN-Code: - 9120045476361
