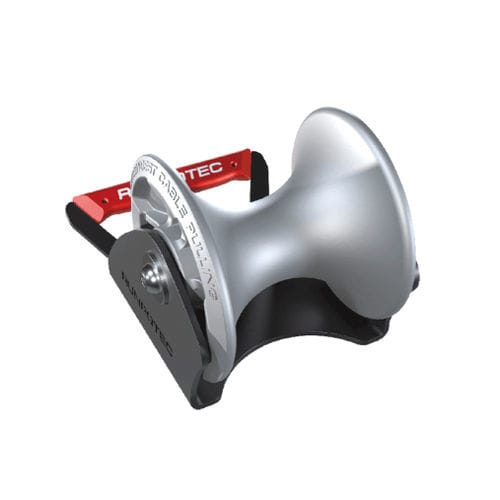

Cable roller guide 10157

CABLE GUIDE ROLLER - SHAFT for shaft inlets or outlets - roller diameter Ø 130 mm The cable guide roller - shaft is ideally suited for mounting in shafts to pull cables gently around corners with the least possible resistance. It can be secured in place with screws via the assembly openings. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality die-cast aluminium rollers with integrated ball bearing and the sturdy powder-coated steel frame guarantee a long service life. Ergonomic aluminium handle - Load capacity 4500 kg Optimum area of application: to pull cables in shafts gently and effortlessly around corners Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com. Scope of supply: 1 x Cable guide roller - shaft ADVANTAGES • Aluminium heavy-duty rollers with stainless steel ball bearings • Robust metal frame • CDP and powder coated • Ergonomic aluminium carrying handle • Load capacity 4.500 kg • Dimensions: - L 220,5 x B 155 x H 140 mm • Weight: - 2,86 kg • Material: - Roller: Aluminium / Frame: Steel • Load bearing capacity: 4500 kg • Max. cable diameter: Ø 100 mm • Roll diameter: - Ø 130 mm
