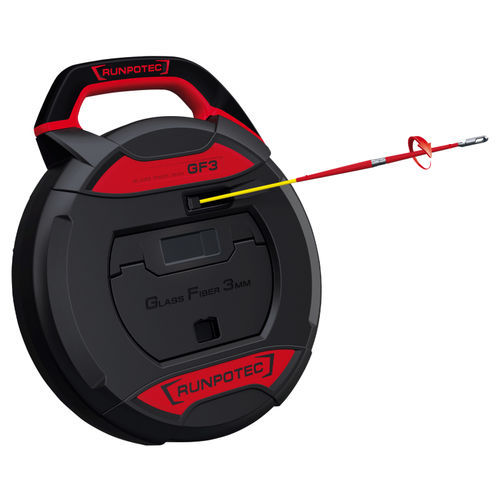

Fiberglass cable puller GF3

portable

CABLE PULLING TOOL, FIBERGLASS ROD Ø 3 MM for pipe diameters 10 - 50 mm GF3 - Cable pulling tool without meter counter, glass fibre rod Ø 3 mm with kink protection ending joint (internal thread RTG Ø 6 mm) and patented guiding head with twist adjustment (2 x external thread RTG Ø 6 mm). Stowed in a shock-proof plastic box. The box is splash-water and dust-proof, extremely shock-proof and therefore ideally suited for the construction site. The GF3 plastic box can be opened with only a single screw for service work. The glide-back protection prevents the fibreglass rod from accidentally slipping back into the box. Furthermore, the box has an ergonomic carrying handle and an anti-slip coating. The scope of delivery includes an 18-piece accessory set. The newly developed kink protection technology makes it possible to overcome bending radii of up to R = 38 mm. The specified total breaking load of 130 kg refers to the glass fibre rod incl. kink protection ending joints. Outstandingly suitable in combination with the RUNPOTEC inspection cameras. The cable pulling loop (Ø 14 mm outside) with built-in twist adjustment and protective cap included can be used for one or more cables up to a cable diameter of Ø 12 mm. Quick attachment of the cables to the loop. Any plugs are protected by tensile load on the cable. Optimal field of application: for pipe dimension 10 mm - 50 mm. ADVANTAGES • Guiding head with swivel and kink protection • Automatic glide back protection • Easy service access - open with a single screw • Shear-stable • Jobsite capable • Splash water & dust proof • Shock- and break proof • Also for occupied pipes • Including cable pulling loop (Ø Outside 14 mm)
