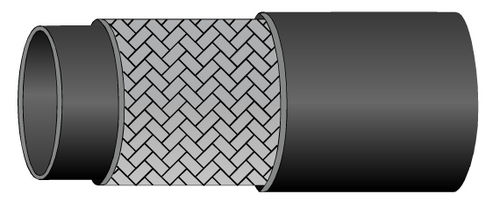

Water hose DIEHARD T1D

rubberhigh-pressure

Recommended For: High pressure hydraulic oil lines in applications where the outside cover of the hose is subjected to abrasion that may cause premature failure of standard hoses. The very high abrasion resistant properties of the cover, combined with the high working pressures and excellent impulse life when tested to EN 853 Type 1SN/SAE 100R1AT test conditions result in, increased service life and minimise equipment downtime. Tube: Black, oil resistant synthetic rubber. (Nitrile). Reinforcement: One braid of high tensile steel wire. Cover: Black, extra abrasion resistant and oil resistant rubber. “FRAS” Flame Resistant and Anti-Static. The weight loss of the cover under ISO 6945 method of test for abrasion resistance is less than 10% (less than 0,05 g) of that allowed by DIN 20022-1SN and EN 853 Type 1SN. Highly visible layline branding for easy and permanent identification. No skiving required with T200 & T700 Series BITELOK Crimp Couplings and K Series Field Attachable Couplings. Temperature Range: From -40°C to +100°C (-40°F to +212°F). For water, emulsions etc. click to view Working Pressure: Maximum working pressures are based on 4:1 safety factir (minimum burst to maximum working pressure).
