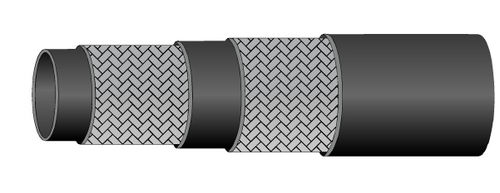

Hydraulic hose DINFLEX DF2Arubberhigh-pressuresteel-braided
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- rubber
- Applications
- high-pressure
- Other characteristics
- steel-braided
- Inner diameter
Max.: 25 mm
(0.984 in)Min.: 6 mm
(0.236 in)- Pressure
420 bar
(6,091.585 psi)
Description
Recommended For:
High pressure hydraulic oil lines. DINFLEX Hose has the
compact outside diameter of one wire braid hose, but
exceeds the performance requirements of SAE 100R2 two
wire braid hose.
Additionally it has a smaller bend radius and higher
flexibility than standard two wire braid hoses.
Not suitable for use with Field Attachable Couplings.
Tube:
Black, oil resistant synthetic rubber. (Nitrile).
Reinforcement:
Two braids of high tensile steel wire.
Cover:
Black, oil resistant and abrasion resistant synthetic rubber.
No skiving required with T200 & T700 Series BITELOK Crimp Couplings.
