Pt1000 temperature transducer MWTM-U 3m
ductwall-mountM12 connector

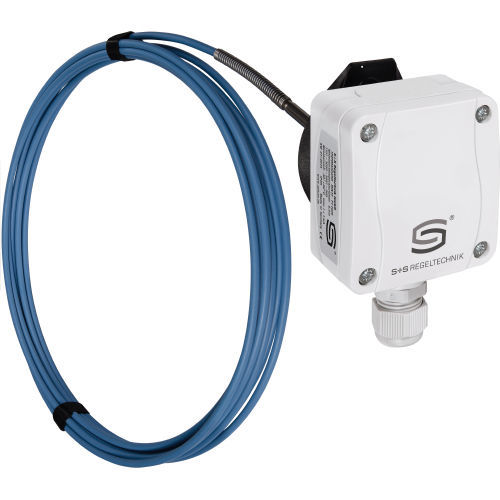

Pt1000 temperature transducer - MWTM-U 3m - S+S Regeltechnik - duct / wall-mount / M12 connector
Pt1000 temperature transducer - MWTM-U 3m - S+S Regeltechnik - duct / wall-mount / M12 connector
Pt1000 temperature transducer - MWTM-U 3m - S+S Regeltechnik - duct / wall-mount / M12 connector - image - 2
Pt1000 temperature transducer - MWTM-U 3m - S+S Regeltechnik - duct / wall-mount / M12 connector - image - 3
Pt1000 temperature transducer - MWTM-U 3m - S+S Regeltechnik - duct / wall-mount / M12 connector - image - 4
Pt1000 temperature transducer - MWTM-U 3m - S+S Regeltechnik - duct / wall-mount / M12 connector - image - 5
Pt1000 temperature transducer - MWTM-U 3m - S+S Regeltechnik - duct / wall-mount / M12 connector - image - 6
Add to favorites
Compare this product


Characteristics

Technology
Pt1000
Mounting
wall-mount, duct
Electrical connection
M12 connector
Protection level
EMC, IP65
Applications
air, environmental
Other characteristics
precision, 2-wire, 3-wire, average, flexible
Temperature

Max.: 150 °C
(302 °F)

Min.: -50 °C
(-58 °F)

Description

Mean value temperature measuring transducer / rod sensor THERMASGARD® MWTM Calibratable mean value temperature measuring transducer THERMASGARD® MWTM (rod sensor) with eight switchable measuring ranges, continuous output, fully active flexible sensor rod for mean value measurement, plastic-coated copper protective tube (sturdy version), housing made from impact-resistant plastic and housing cover with quick-locking screws. This sensor is used for the detection of average temperatures (mean values) in gaseous media, e.g. in ventilation and air conditioning ducts over the entire cross section, or over a defined length. Laid along a meandering route, it uniformly detects the surrounding temperature as a duct sensor. The rod sensor is available in lengths of 0.4...20 m and is delivered as standard with a mounting flange. For proper mounting of the rod, mounting clamps MK-05-M (accessories) are available. The sensor is factory-calibrated; an environmental precision adjustment by an expert is possible.
