Relative humidity and temperature sensor AFTF-I
wall-mountdigital4-20 mA

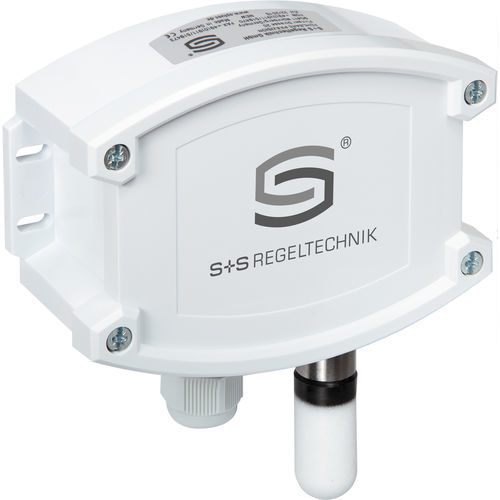

Relative humidity and temperature sensor - AFTF-I - S+S Regeltechnik - wall-mount / digital / 4-20 mA
Relative humidity and temperature sensor - AFTF-I - S+S Regeltechnik - wall-mount / digital / 4-20 mA
Relative humidity and temperature sensor - AFTF-I - S+S Regeltechnik - wall-mount / digital / 4-20 mA - image - 2
Add to favorites
Compare this product


Characteristics

Type
relative
Mounting
wall-mount
Output
digital, 4-20 mA, 0-10 V
Supply voltage
15VDC, 32VDC, 36 VDC
Electrical connection
M12 connector
Protection level
IP65
Other characteristics
high-precision
Applications
air
Measuring range (%)

Max.: 100 %

Min.: 0 %

Measuring range (temperature)

Max.: 80 °C
(176 °F)

Min.: -35 °C
(-31 °F)

Working temperature

Max.: 80 °C
(176 °F)

Min.: -30 °C
(-22 °F)

Description

On-wall humidity and temperature sensor HYGRASGARD® AFTF Calibratable HYGRASGARD® AFF / AFTF outside humidity/temperature transmitter (±2,0%) with plastic sinter filter (metal sinter filter optional) , in an impact resistant plastic housing with quick-locking screws, optionally with/without display, with cable gland (optionally with M12 connector according to DIN EN 61076-2-101). The sensor devices measure relative humidity and/or air temperature and convert the measurand into a standard signal of 0-10 V or 4...20 mA. Both humidity/temperature transmitters support four switchable temperature ranges and are applied in non-aggressive, dust-free atmospheres in refrigeration, air conditioning, ventilation and cleanroom engineering. Relative humidity (in % r.H.) is the quotient of water vapour partial pressure divided by the saturation vapour pressure at the respective gas temperature. The measuring transducers provide precise detection of humidity. A digital long-term stable sensor is used as measuring element for humidity. The sensor is factory-calibrated and can be fine-tuned to ambient conditions by an expert.
