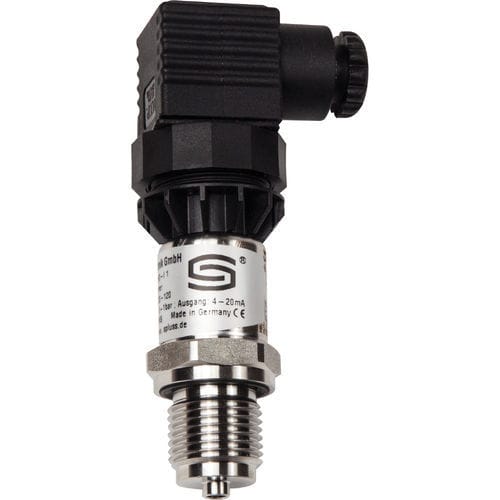

Relative pressure transducer SHD-U 10
4-20 mA0-10 V24VAC

Relative pressure transducer - SHD-U 10 - S+S Regeltechnik - 4-20 mA / 0-10 V / 24VAC
Relative pressure transducer - SHD-U 10 - S+S Regeltechnik - 4-20 mA / 0-10 V / 24VAC
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Output
4-20 mA, 0-10 V
Supply voltage
24 Vdc, 12 Vdc, 15VDC, 32VDC, 9VDC, 8VDC, 24VAC
Material
stainless steel
Protection level
IP65
Applications
process
Other characteristics
precision
Pressure range

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145.04 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 135 °C
(275 °F)

Description

Pressure measuring transducer PREMASGARD® SHD/SHD-SD The PREMASGARD® SHD ressure transmitter measures relative pressures in the bar range. It converts the measurand into a standard signal of 0-10 V or 4...20 mA. Process connection is G ½" straight external pipe thread. The SHD device is used for pressure measuring in gaseous and liquid media. Applications can be found in hydraulics and pneumatics, in process, mechanical and plant engineering. The pressure measuring cell is gasketless welded together with the pressure transducer.
