Pt1000 temperature transducer ALTM1-U LCD
0-10 VM12 connectorIP65

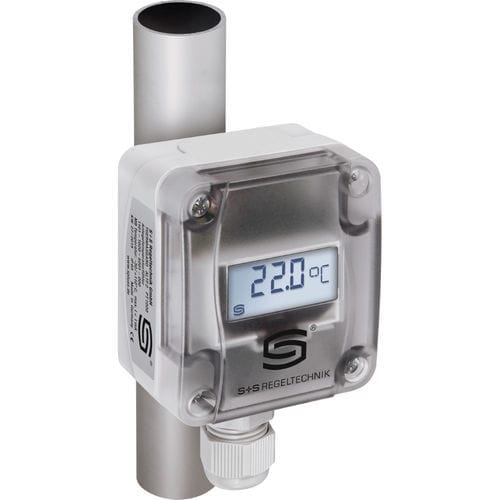

Pt1000 temperature transducer - ALTM1-U LCD - S+S Regeltechnik - 0-10 V / M12 connector / IP65
Pt1000 temperature transducer - ALTM1-U LCD - S+S Regeltechnik - 0-10 V / M12 connector / IP65
Pt1000 temperature transducer - ALTM1-U LCD - S+S Regeltechnik - 0-10 V / M12 connector / IP65 - image - 2
Pt1000 temperature transducer - ALTM1-U LCD - S+S Regeltechnik - 0-10 V / M12 connector / IP65 - image - 3
Pt1000 temperature transducer - ALTM1-U LCD - S+S Regeltechnik - 0-10 V / M12 connector / IP65 - image - 4
Add to favorites
Compare this product


Characteristics

Technology
Pt1000
Output
0-10 V
Electrical connection
M12 connector
Protection level
IP65
Applications
water
Other characteristics
compact, 2-wire, 3-wire, with digital display
Temperature

Min.: -50 °C
(-58 °F)

Max.: 100 °C
(212 °F)

Description

Surface contact / tube contact temperature measuring transducer THERMASGARD® ALTM1 Calibratable THERMASGARD® ALTM 1 surface-contact temperature measuring transducer (compact version) with eight switchable measuring ranges, continuous output, in an impact resistant plastic housing with quick-locking screws, optionally with/without display, incl. strap. The surface-contact sensor serves to detect the temperature on lines, pipes (e.g. cold and warm water) or on heating sections for heating control. The sensor is factory-calibrated and can be fine-tuned to ambient conditions by an expert.
