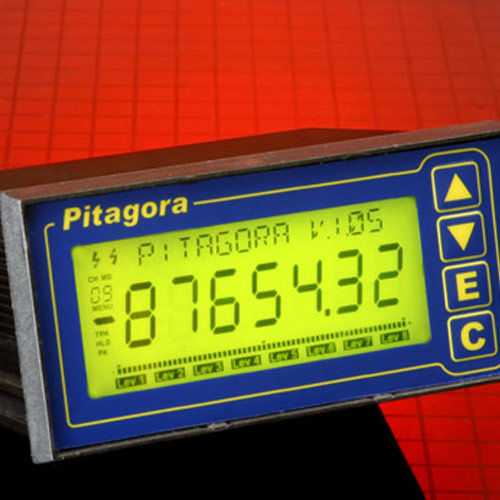

Process indicator PITAGORA

digitalpanel-mountmodular

• Multichannel LCD display • Customizable modular structure • Measuring flexiblity not to get with PLC • Different measuring function to adapt the product according to the application • Connectable with digital sensor networks • Different I/O boards, to satisfy every request Series PITAGORA because of its flexibility can be connected to all transducers made by S2Tech: load cells, radial load cells, torquemeters, pressure transducers, magnetostrictive linear displacement and level transducers, servoinclinometers, LVDT. Typical applications are: weighing systems, automatic assembling machines, quality control machines, presses, machine tools, textile machines, flexographic machines, rubber machines, paper machines, blow molding machines, plastic injection machines, tile machines, etc. Weighing systems: PITAGORA can sum up to 8 load cells at the same time memorizing all 8 calibration parameters therefore obtaining the best possible accuracy. Test machines (option): S2Tech can set PITAGORA for connecting a load cell and a displacement transducer showing both measures on display and activating customised mathematical and statistical functions. Allowance controlled insertion of pin into an hole: PITAGORA is able to control, on automatic assembling machines, the quality of a pin insertion into an hole by checking that the force necessary to have a pin blocking is within a two alarm levels tolerancy ( insertion peack force is related to a mechanical allowance ). It is possible to memorize the positive or negative peak force between two points on the actuator movements and alarm levels are active only on the memorized value.
