Elevator control system MRL150

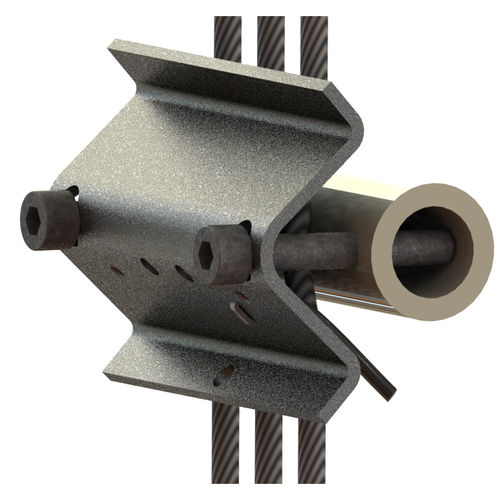

• Multirope load weighing device for rope lifts • Rope diameter: from 6 to 16 mm • Only 8 cm height on the rope • Suitable for wire or plastic ropes • Good price/performance ratio • Extremely compact The Multirope MRL150 load weighing device can be used to measure and control the load in the cabin through the tensioning of the ropes. It can be easily installed in new lifts and used for modernization, being fast to install, reliable over time and with a good price. With a height on the rope of 8 cm only, the MRL sensors allow the optimization of the vertical spaces of the plant system that is typical of modern lifts (Machine Room Less), where every inch of space is important for installing the plant system in accordance with modern design practices. The MRL150 sensor should be applied to all ropes of the plant system – disposing of a space for 122 mm wide ropes – in a position suitable to detect the load present in the cabin and has dimensions that make it possible to install it on the latest ropes clad in plastic material or flat ropes. The load measurement is independent from the roping of the plant roping. The flexibility of transducer installation arises from design choices aimed at creating a simple, secure installation and a product that can be easily configured to suit the diameter of the ropes on which it will be installed. In order to adapt the MRL sensor to the diameter of the rope involved,
