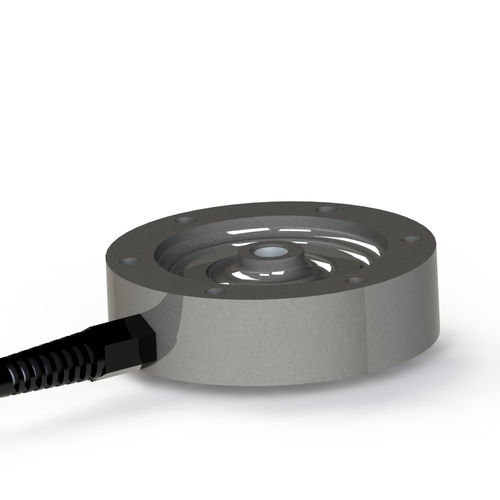

Compression load cell LT1

pancake typedigitalanalog

The transducers of this product series are suitable for traction/compression loads – with 200 to 1.000 Kg Full Scale – that can be supplied in: • version without (mV/V) amplifier • with voltage or current amplifier • with built-in digital electronics • with characterization in N They are extremely precise, with an attractive price, for general use, for industrial automation applications, for fixed and mobile plant systems. They are used with loads concentrated in one point or also for loads distributed over multiple supports, such as for weighing silo or weighing platforms, or for monitoring the force transmitted by actuators or for indirect measurements of the torque of a lifting motor/winch (measuring the reaction forces) or in packaging machinery or industrial automation in general. The transducers of this product range are characterized by a low profile, they are precise and attractively priced, and can be used in all applications featuring a traction/compression load perpendicular to the sensor fastening plane, aligned with its measuring axis, in compression. These transducers are protected against atmospheric agents by silicone protectors that are further protected by the measuring body when the transducer is installed in the installation site. The load application is performed by means of a threaded through hole so as to obtain the direct coupling with the machine or with load adapters that are specific to the application (e.g. with junctions or spherical adapters).
