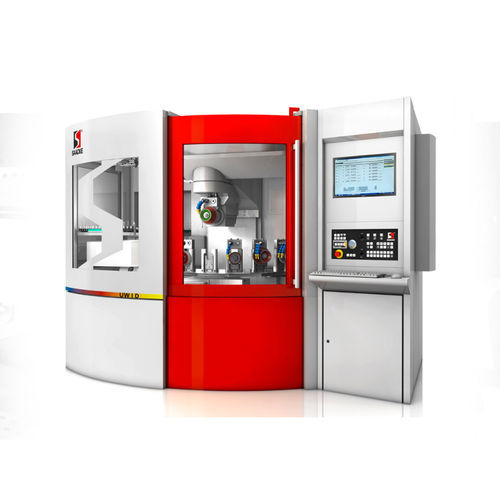

Tool grinding machine UW ID

CNCautomatic1-axis

Incorporates automation, flexibility and precision Different tool materials, as well as different tool types, can be combined and managed under full automation The automation process allows you to randomly produce and re-sharpen tools in one batch Tools are stored in a removable pallet or chain loader Grinding wheel packages can be up to 150 mm in length (measured at the abutting HSK 50 surface) and 150 mm in diameter when using the automatic wheel changer HSK 50 grinding wheel packages up to a diameter of 150 mm can be changed automatically Tool data for complete grinding Max. diameter 250 mm Max. cutting edge length for complete grinding (measured at the front face of the work head) 430 mm Technical highlights Grinding wheel at the swivel point of the grinding head work head a-axis with direct drive 600 rpm (optional 1,000 rpm) Up to 6 (optional 12) grinding wheel packages are managed in the wheel changer Simultaneous and automatic changing of the grinding wheel packages, along with the cooling nozzles Random programmable tool loading system (optional) Capacity/Pallet max. 143 tools Capacity/Chain loader max. 320 tools
