Power cable T644-061 seriesDINwith copper screenIP67
Add to favorites
Compare this product
Characteristics
- Type
- power
- Format
- DIN
- Protection
- with copper screen, IP67
- Configuration
- stranded, paired
- Applications
- for sensors, HV link
- Material of the insulation
- PUR-sheathed, FEP-insulated
- Norms
- IEC
- Temperature
Min.: -40 °C
(-40 °F)Max.: 150 °C
(302 °F)- Length
2,000 mm, 3,000 mm
(78.7 in, 118.1 in)
Description
Safe HV strain gauge measurement (full / half bridge) for example with CSM HV STG4 pro BS20 measuring module
Issue of HV test certificate with reference to batch number due to optimum traceability.
Optional: Test and repair of already used sensors on request.

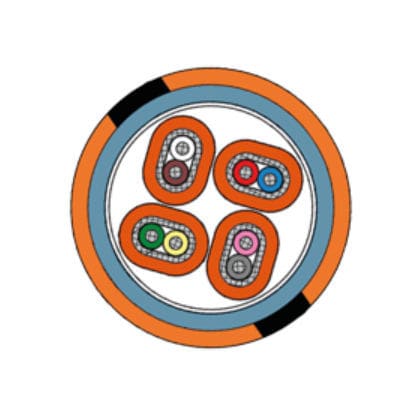

Core insulation -
FEP – acc. to DIN 47100 1-8 (core-Ø 0,55 mm)
Pair sheath -
FEP – orange acc. to RAL 2004
Outer sheath -
PUR
Sheath colour -
orange with black vertical stripes
Stranding -
paired construction (for EMC)
Outer diameter -
approx. 7,4 mm
