Thermocouple electrical cable T141 seriespowerinsulatedIP67
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- insulated, IP67
- Configuration
- stranded
- Applications
- HV link
- Material of the insulation
- PUR-sheathed
- Other characteristics
- connection, for thermocouples
- Temperature
Max.: 150 °C
(302 °F)Min.: -50 °C
(-58 °F)- Length
2,400 mm, 2,500 mm
(94.5 in, 98.4 in)
Description
Safe HV temperature measurement in HV environments
• small cable diameter for narrow spaces
Issue of HV test certificate with reference to batch number due to optimum traceability.
Optional: Test and repair of already used sensors on request.

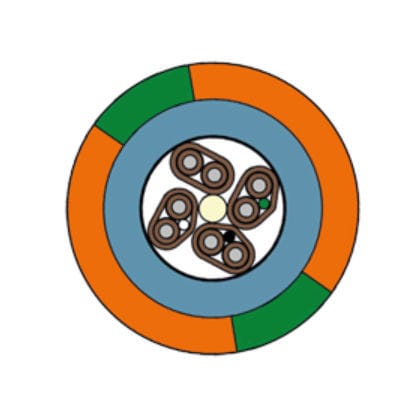

Connection cable -
HV thermo cable type K
Insulation -
PI foil
Pair sheath -
PI foil
Sheath colour -
orange with green vertical stripes
Outer diameter -
approx. 4,5 mm
Dielectric strength -
1000 V AC over inner sheath
