Thermocouple electrical cable T141-063 series

powerinsulatedIP67

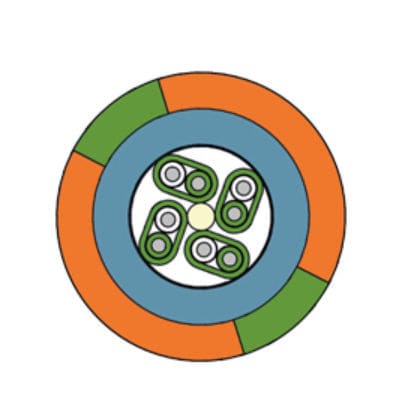

Safe HV temperature measurement in HV environments • small cable diameter for narrow spaces Issue of HV test certificate with reference to batch number due to optimum traceability. Optional: Test and repair of already used sensors on request. Connection cable - HV thermo cable type K Pair sheath - PFA – green acc. to RAL 6018 Inner sheath - FEP – blue acc. to RAL 5024 Sheath colour: - orange with green vertical stripes Outer diameter - approx. 4,4 mm Dielectric strength - 1000 V AC over inner sheath Temperature range - fixed laying: -50°C / +150°C flexible application: -40°C / +150°C
