Conveyor furnace SINTERsinteringquenchingelectric resistance
Add to favorites
Compare this product
Characteristics
- Configuration
- conveyor
- Function
- sintering, quenching
- Heat source
- electric resistance, gas
- Atmosphere
- controlled atmosphere
- Other characteristics
- continuous, high-temperature, custom, industrial, programmable, low energy consumption, high-productivity, for metallurgy
- Maximum temperature
1,120 °C
(2,048 °F)
Description

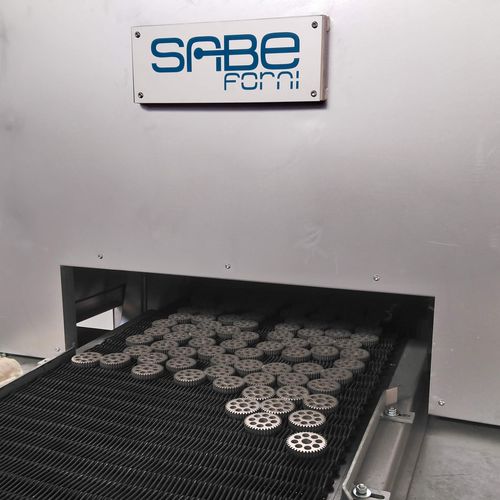

Sintering-hardening furnace, designed and manufactured in Italy.
Herebelow, the main parts of the plant:
- prechamber;
- sintering zone;
- carborestoration zone;
- sintering-hardening cooling zone;
- endogas generator.
Many advantages have beeen developed:
- silicon-carbide caramic muffle for higher efficiency and reduction of maintenace operations.
- loop for measurement of Carbon potential.
- regulation of %C by included PLC.
- Adjustable cooling system. For pieces made of self-hardening material, the system allows to obtain different metallurgic structures and hardening degrees, thank to the variation of speeds and temperatures.
The plant can be completed by the equipment for non-contact temperature measurement.
As per each plant designed by Sabe Forni, all projects are completely developed following the Customer's need.
Catalogs
FORNI INDUSTRIALI SABE FORNI
2 Pages
