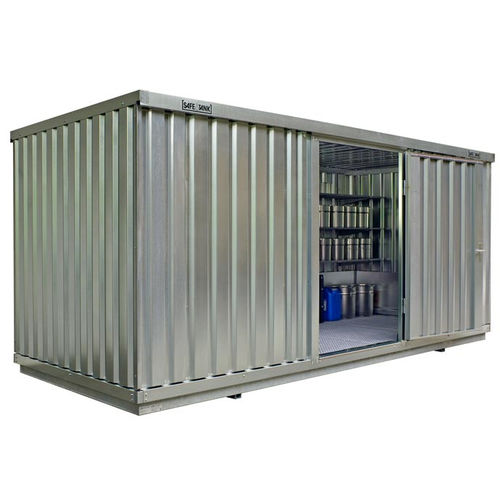

Galvanised steel intermodal container ST 1700

storagehazardous materialswith heat insulation

Characteristics: Approved for the outdoor storage of non-flammable, highly flammable and extremely flammable materials of all water hazard classes according to the German Ordinance on Industrial Health and Safety (“Betriebssicherheitsverordnung - BetrSichV”) Built according to the requirements of the German Water Resources Act (“Wasserhaushaltsgesetz - WHG”) Side walls, roof and door made from galvanised trapezoidal sheet metal Single door 1300 x 1890 mm fitted as standard, right doorhang, with security lock and handle, mounted in the 5080 mm wall Roof with integrated guttering via the long sides, snow load 100 kg/m² Robust construction with structural analysis: Max. wind pressure on wall: w=0.40 kN/m² Max. wind suction on wall and roof: w=-0.25 kN/m² Max. snow load on roof: s=1.00 kN/m² Max. working load on sump: q=10.00 kN/m² All-round galvanised splash protection walls to direct spills into the sump Sump tray made of 3 mm sheet steel (S235JR), welded and leak tested, 40 mm clearance underneath the tank for corrosion avoidance, with galvanised grids, loadable up to 1000 kg/m², can be driven on Painted finish as optional extra, available colour codes: RAL 1003, RAL 3000, RAL 5010, RAL 6010, RAL 7035 and RAL 9002 Further colours available on request
