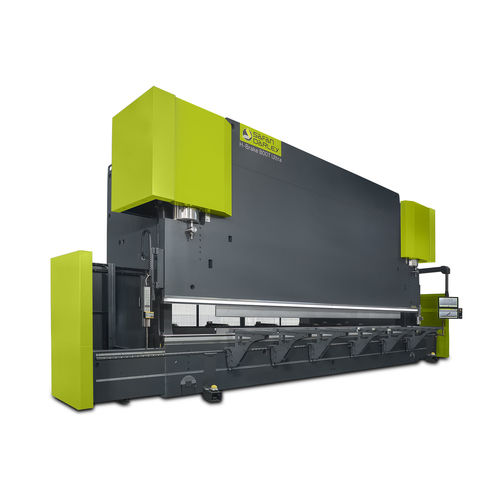

Hydraulic press brake H-Brake HD 700-1000T Ultra

CNC3-axis

The HD machine with HD options • - High-end press brake with Y-Axis repeat accuracy (0,01mm) • - Robust & durable construction • - Quick setup and fast cycle times • - High level of freedom with 2 different types of control types • - Flexible throat & Q dimensions • - Custom made solutions • - Versatile bending aids • - A large variety of tonnages and lengths • - Wide range of flexible tandem solutions • - The first bend is always perfect ( within 0,5°) with the E-bend L Integrated safety Work fast without risk: SafanDarley makes that a reality with the safety system integrated within the controls. It works with a safety light screen that is automatically directed from the SafanDarley E-Controls. Vul hier een tekst in Standard edition • - Delem DA 66T 2D or E-Control EC20 controls • - Controls mounted on a swivelling arm on the right side of the machine • - Y1/Y2 axis are CNC-powered • - X axis is CNC-powered • - R axis is CNC-powered • - Z1 and Z2 axis are controlled manually • - Wila NSCL-II Premium top tool adaptor equipped with mechanical clamping, • - with a maximum load of 250T/mtr top-bearing and 300 T/mtr shoulder-bearing • - and CNC deep-hardened tool clamping • - Wila NSCR-II Premium CNC-powered crowning using mechanical clamping, • - CNC deep-hardened tool clamping, maximum load 300 T/mtr, Tx/Ty alignment • - 2 support arms (300mm) • - LazerSafe light beam protection, type LZS-004 (Delem) • - Programmable and integrated safety light screen (E-Control) • - Foot pedal including “Hold To Run”-function • - Work area lighting on the front and rear side of the machine • - Electronic installation of mains connection 3/N/PE 50 Hz 230/400 VAC • - Machine is designed in accordance with the prevailing CE standards
