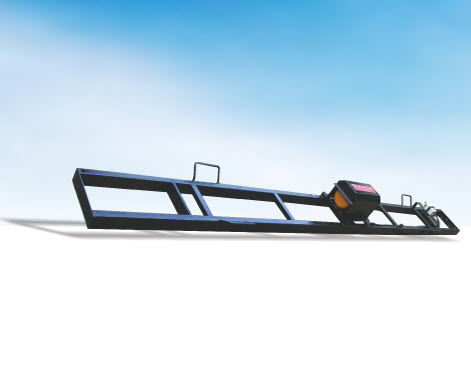

Double beam screed vibrator consists of a Beam unit and a Vibrator unit. Double beam screed vibrator is used to vibrate the concrete to give a compact and leveled surface. These vibrators are self-travelling and only require guiding along the formwork, dragged at ends by two operators without working in the concrete.
Double Beam Screed Vibrator Features
» Safari Double Beam Screed Vibrator is manufactured from M.S. channel or box pipe for durability
Prime Mover - 2 HP, Single Phase / Three Phase Vibrating Electric Motor
Length - 10’ to 14’ adjustable
Beams - Two nos. ; Manufactured from M.S. Channel
Dimensions - L 3375[Extendable by 635 mm on both ends] x W 400 x H 340 mm
weight - 126 kg
