Building lifting unit SAFARI CF

feederfor remote controlconcrete

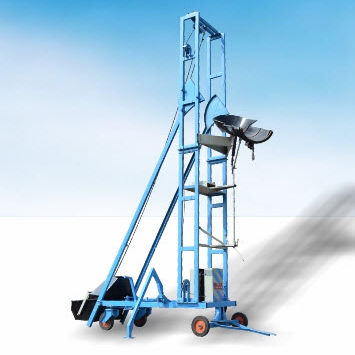

Column Feeder Machine is a specialized machine used in commerical or industrial projects for automated pouring of concrete to the column formwork for building of concrete columns. High quality concrete mixture is mixed by concrete batching plant and is easily lifted by a mini crane or a builders hoist lift and then transferred to the bucket of the column feeder machine. This bucket then travels vertically and pours concrete to the discharge chute. This discharge chute’s height and angle can be adjusted such that it discharges or pours concrete directly to the column formwork. These adjustments are easily controlled by a remote control system. Column Feeder Features » Discharge Chute’s length, height & direction easily adjustable by operator » Remote Controlled Operation » Easily dismantled & assembled » Needle Vibrator Stand Prime Mover - 1.5 HP Single Phase Brake Motor Bucket Volume - 110 litres Wheels - Solid Rubber Wheels – 4 Nos Dimensions - L 3048 x W 1067 x H 5182 mm
