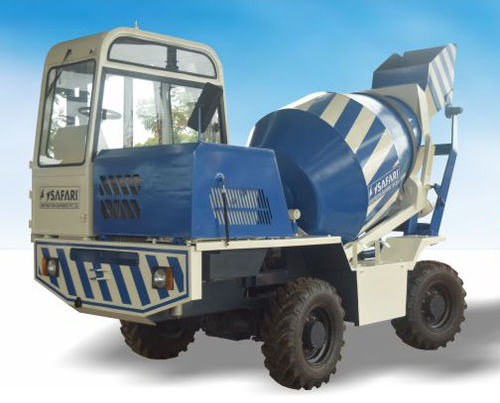

Self-loading concrete mixer SAFARI MAX 2K

Self Loading Concrete Mixers are powerful concrete mixers reducing labour and time by manifold on construction sites. Single Operator can weigh and load the exact required amount of cement, sand and aggregates from different locations, and mix the concrete while in transit to your preferred site. All done within no time and by a single operator. Self Loading Concrete Mixer Features » Four Wheel Drive » Reliable, High Performance Concrete Mixing » Compact Design » Fully Automatic Operation Engine - Kirloskar make 4R810 T BS III 60 HP,2400 RPM ACWR Diesel engine Chassis - High tensile steel welded “C” type Construction Transmission - 4 wheel drive, 4 speed Automotive hydrostatic transmission. Electro-hydraulic control for “slow” & “fast” speeds. Brake - Power braking with oil cooled disc type brakes on all 4 wheels. Self Loading System - Single Joy stick controlled by hydrostatic cylinders operated loading hovel & 280 L bucket Water System - 150 Centrifugal pump and Electronic water meter Batching from external source Hydrostatic Drum Drive - Hydrostatic Drum Drive with high rotation for homogenous mix and drum lift for fast and complete discharge even on inclines Drum Volume : 2.8 Cu.M , Concrete Output : 2 Cu.M , Maximum Drum Rotation : 0-18 rpm infinitely variable for mixing & discharge Electronic Weigh Batching - Up to 8 different aggregates can be weighed & batched in “addition” or subtraction mode Wheels - Tyre : 12.0 / 75-18-12 PR, Tube : 12.5 / 80-18 Tube BKT, Rim size : 9 X 18 (8 Hole) (5128)
