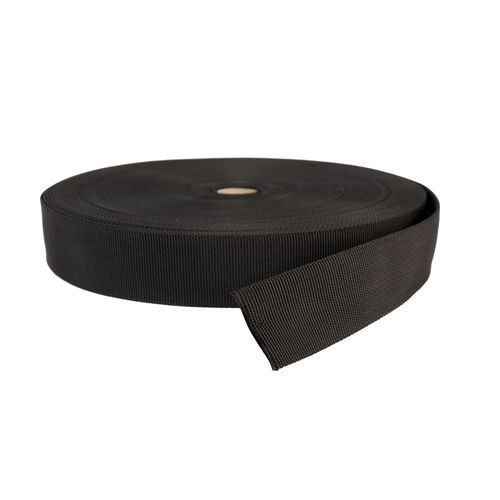

Protection sleeve SL-RDX series
flatfor hydraulic hosesaluminum

protection sleeve
protection sleeve
protection sleeve
protection sleeve
protection sleeve
Add to favorites
Compare this product


Characteristics

Type
protection
Structure
flat
Applications
for hydraulic hoses
Material
textile, polypropylene, aluminum
Protection level
abrasion-resistant, acid-resistant, standard
Color
black
Other characteristics
flexible, woven
Diameter

Max.: 125 mm
(4.9 in)

Min.: 17 mm
(0.7 in)

Temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Length

50 m
(164'00" )

Description

SAFE-SLEEVE protects people near-by a breaking hose (is pin hole-approved). Aluminum rings for attaching the Safe-Sleeve on the hose are also available. Safe-Sleeve features • Our standard textile sleeve • Economical and safe choice for hose protection • Protect people near-by a breaking hose • Protect hydraulic hoses from abrasion • Produced from polypropylene which is very hard-wearing and recyclable • Endure acids and alkalis well • Material fully recyclable • Tolerate both freeze and heat • UV-protected • Excellent abrasion resistance Why Safe-Sleeve? European standard EN ISO 3457 states that hydraulic hoses must be protected in following cases: -operating pressure exceeds 5 MPa (=50 bar) -OR temperature exceeds 60 °C -AND the hoses are in common operating place within 1 meter range from the operator and in case of hose breakage the direct fluid spray may reach the operator In addition, the protectors must be strong enough to stop, spread or turn the fluid from directly hitting the operator once the hose breaks. Standards EN 12999 and EN 4413 also contain protection demands for hose assemblies. Our Safe-Sleeve fulfils these demands! Available Colors Standard color is plain black, no printing. Other colors also possible (MOQ 3 000 m per size). Available Sizes and Lengths It is recommended to choose a size which is a few millimetres larger than the hose to improve protection and make mounting easier. Whether there is a coupling already installed also affects the eligible size.

VIDEO

Catalogs

No catalogs are available for this product.

See all of SAFEPLAST OY‘s catalogs
