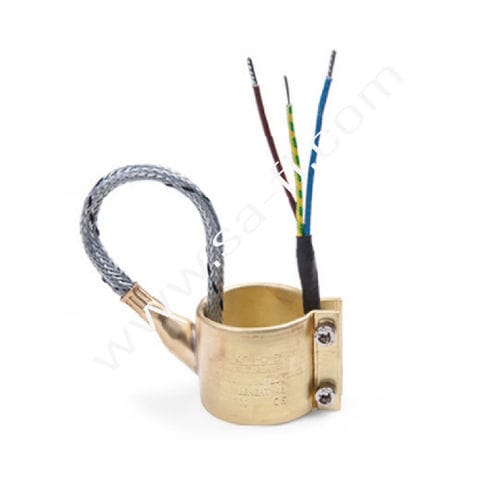

Electric band heater MH-300

waterproofinsulated

Brass Mica Insulated Nozzle HeaterMH-300Nozzle Heaters Used in the nozzles on injection molding machines, input of manifolds and various applications. These more productive barrel nozzle heaters, which have waterproof property, have to be mounted tightly to the tips and worked with remote controller. Available with different cable lengths and lead exits. Technical Specification - Diameter : - Min. Ø30mm - Max Ø80mm Length: - Min 22mm- Max 60mm Voltage: - 230/400 V Wattage: - Max. 4,5 W/cm² Working Temperature: - 300 °C Housing Material: - Special production bronze profile Insulation Material: - 800-1000 °C Mikanite plate Resistance Winding Wire: - 60/15 NiCr 1200°C Energy Input : - Ni GLS cable resistant to 400 °C Thermocouple Options: - J Type (Fe-Const), K Type (NiCr-Ni)
