Electric band heater MH series

insulated

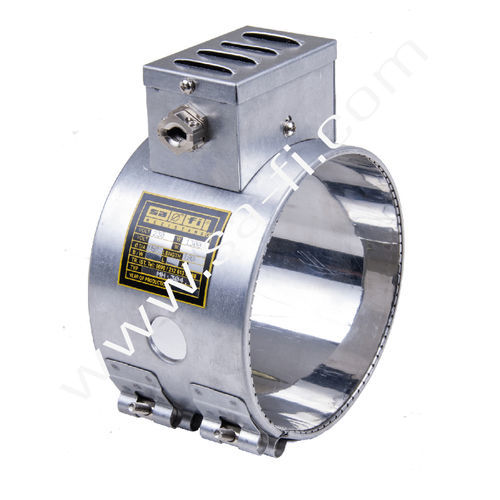

Mika Insulated Band HeaterMH-304Mica Insulated Heaters It is designed as high efficiency and long life band heater for processing and making of plastic raw materials, extruder machines, in textile and packaging industries. This heater cannot be tested idle. In order to operate, it must be installed in such a way that heat transfer is ensured. These band heaters are mainly used in machines with protection guards and in output molds. It is produced according customer's demand. Technical Specification - Diameter : - Min. Ø50mm Length: - Min 30mm Voltage: - 230/400 V Wattage : - Max. 3,5 W/cm² Wall Thickness: - 3,5mm Working Temperature: - 300 °C Housing Material: - Stainless Steel or Aluminised Sheet Insulation Material: - 800-1000 °C Mikanite Resistance Winding Wire: - 60/15 NiCr 1200°C Energy Connection : - Ni GLS Cable Resistant to 400ºC or plug sockets
