Tubular heating element CH-401ZM
ceramicstainless steelzamak

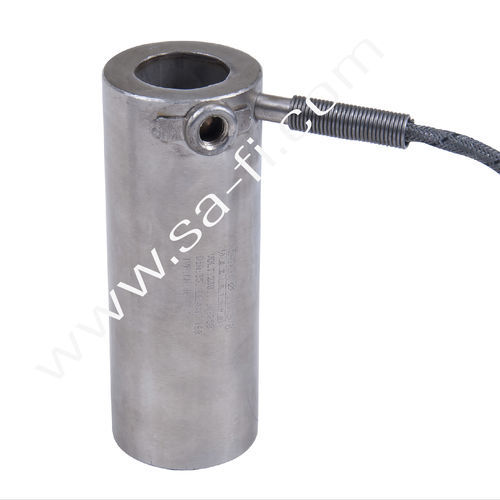

Tubular heating element - CH-401ZM - Safi Rezistans Imalat Sanayi - ceramic / stainless steel / zamak
Tubular heating element - CH-401ZM - Safi Rezistans Imalat Sanayi - ceramic / stainless steel / zamak
Add to favorites
Compare this product


Characteristics

Type
tubular
Material
ceramic, stainless steel, zamak
Maximum temperature

Max.: 1,200 °C
(2,192 °F)

Min.: 550 °C
(1,022 °F)

Description

Ceramic Insulated Zamak Nozzle Heater Ceramic Insulated Heaters It is designed to be mounted on the inside of the molds of extruder pipe machines, on the nozzle of injections for processing anf making plastic raw materials. This heater can be tested idle. It is produced in the form of cylindrical pipes. It is produced according customer's demand. Technical Specification - Diameter : - Min. Ø50mm - Max. Ø150mm. Length: - Min 50mm - Max. 1000mm. Voltage: - 230/400 V Wattage : - Max. 6,5 W/cm² Wall Thickness: - ~16mm Housing Material: - Stainless Steel
